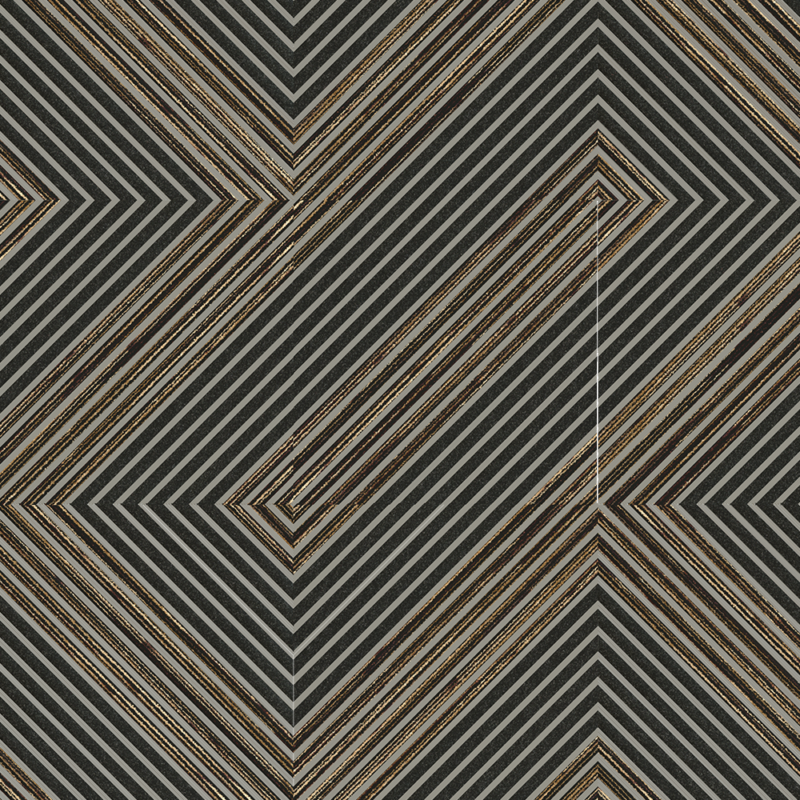

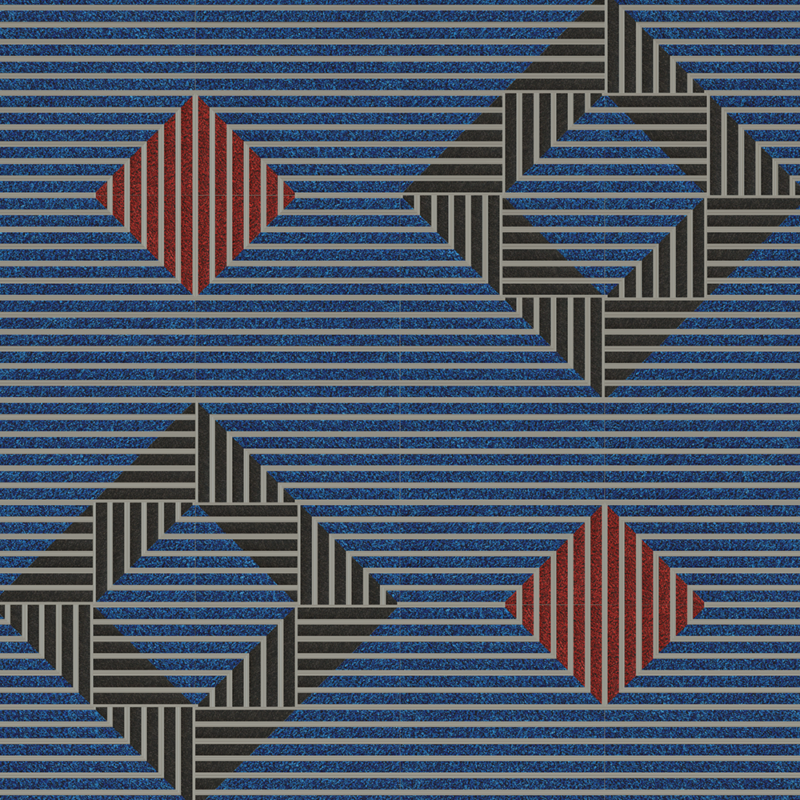

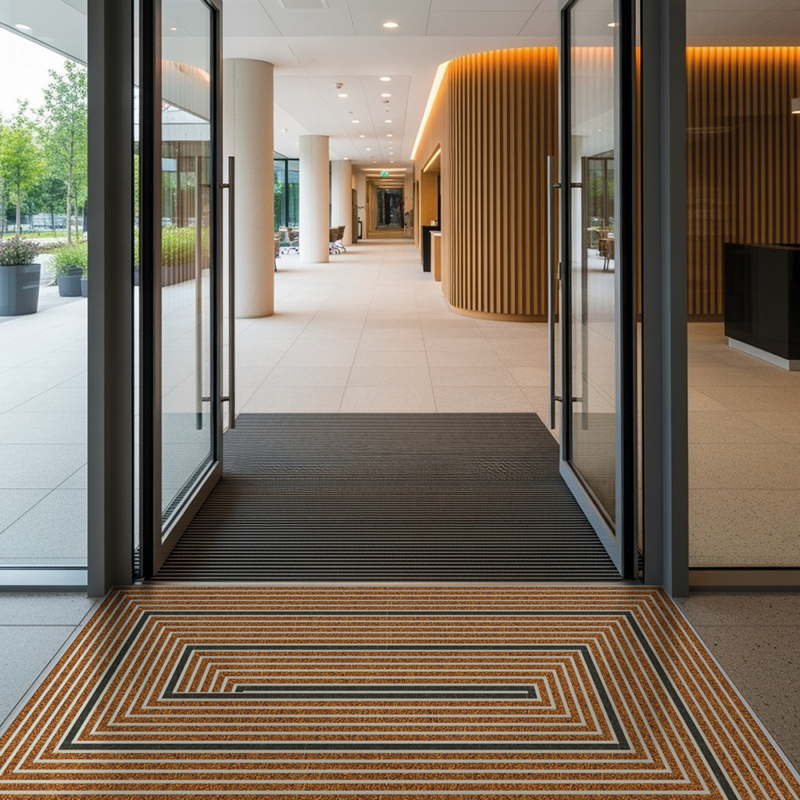

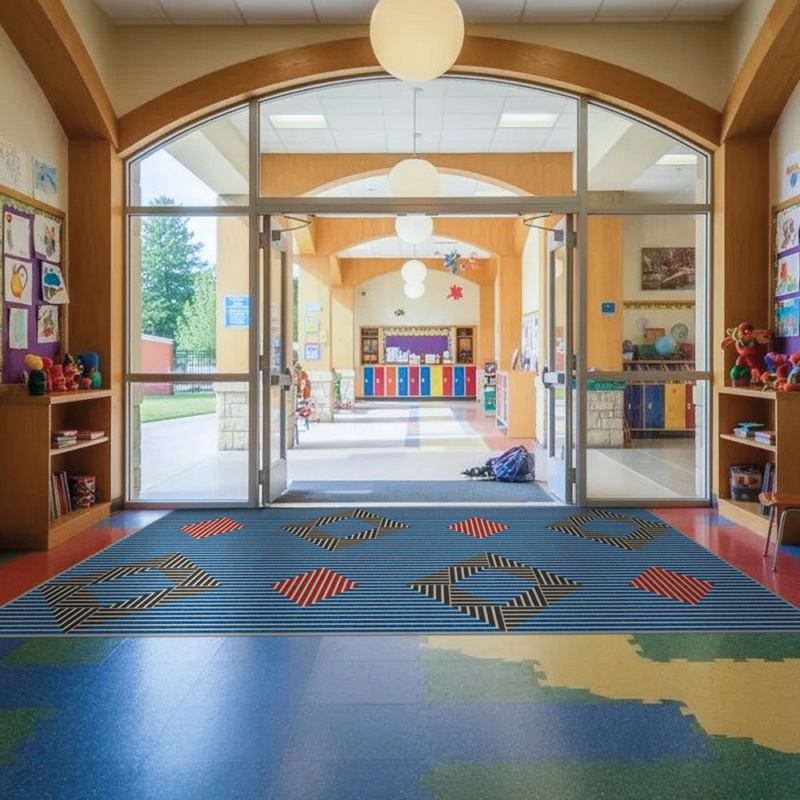

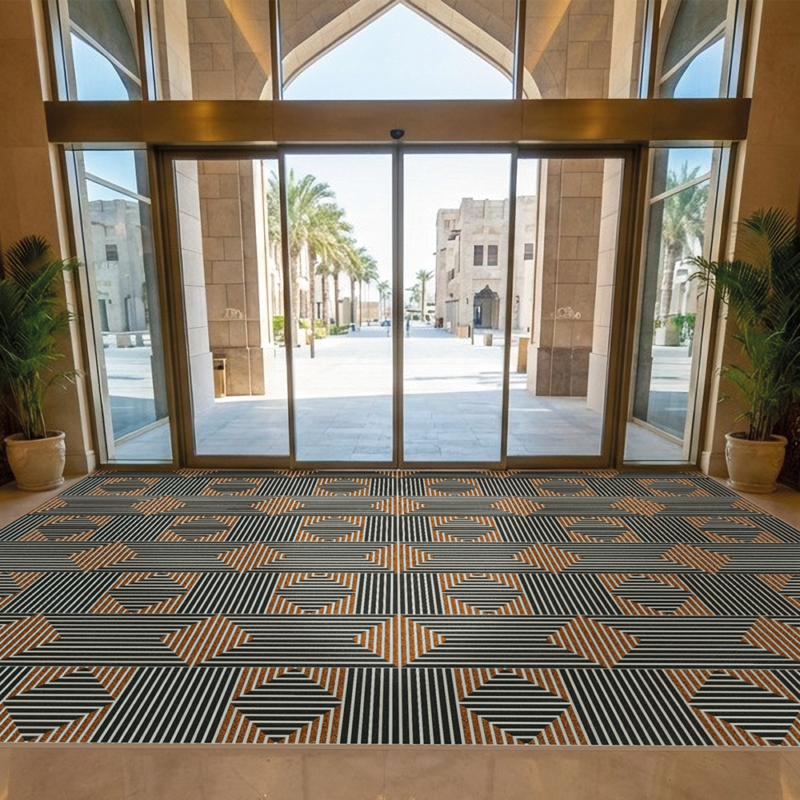

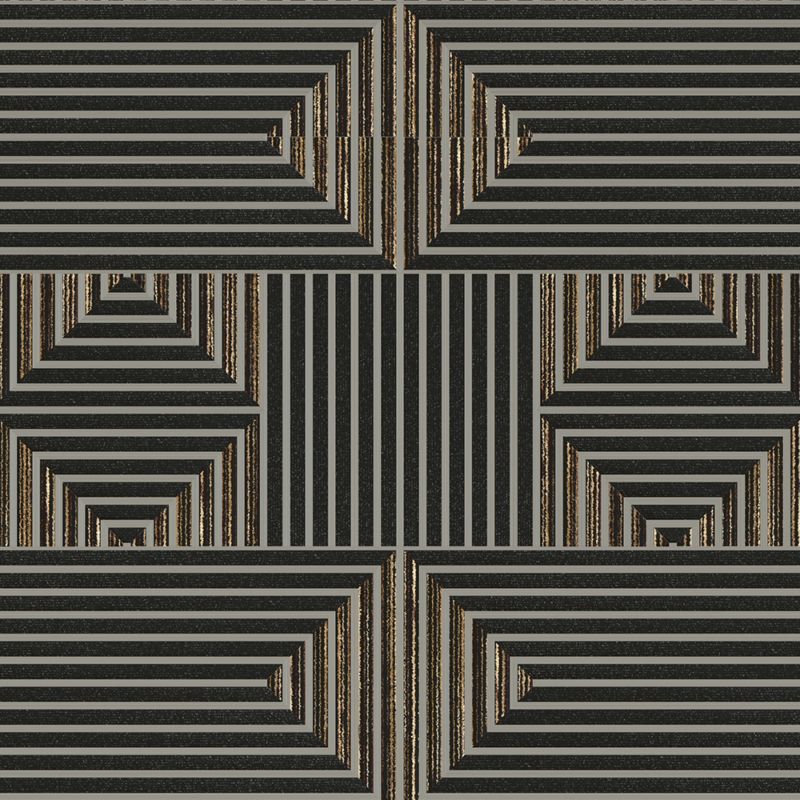

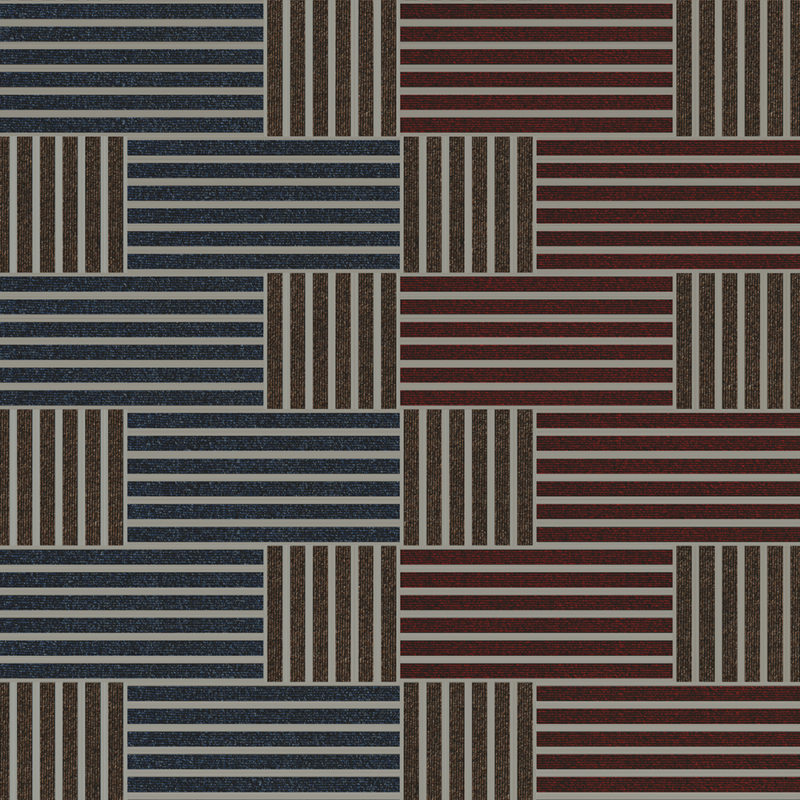

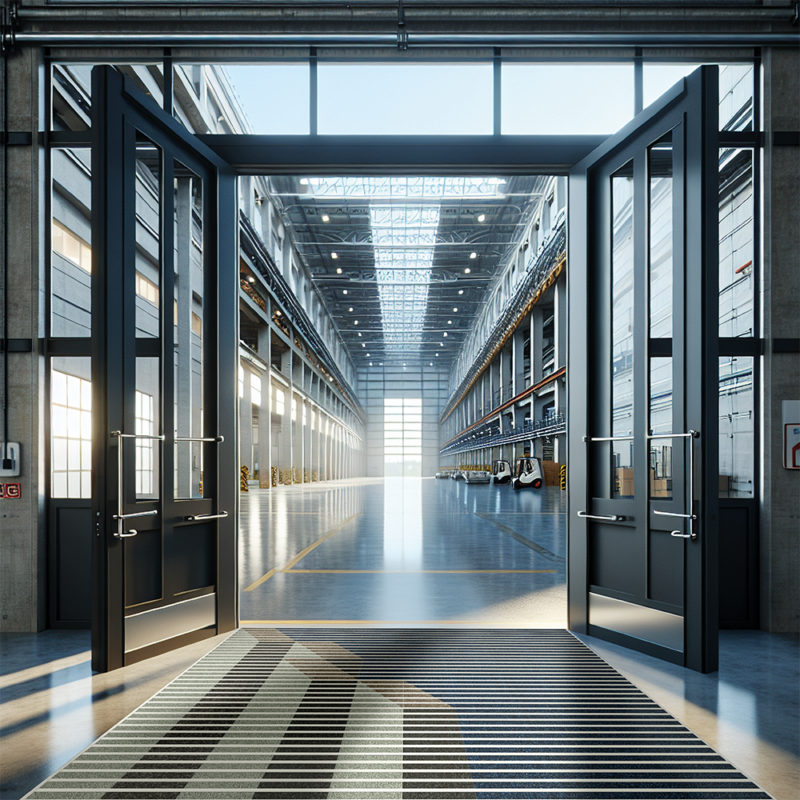

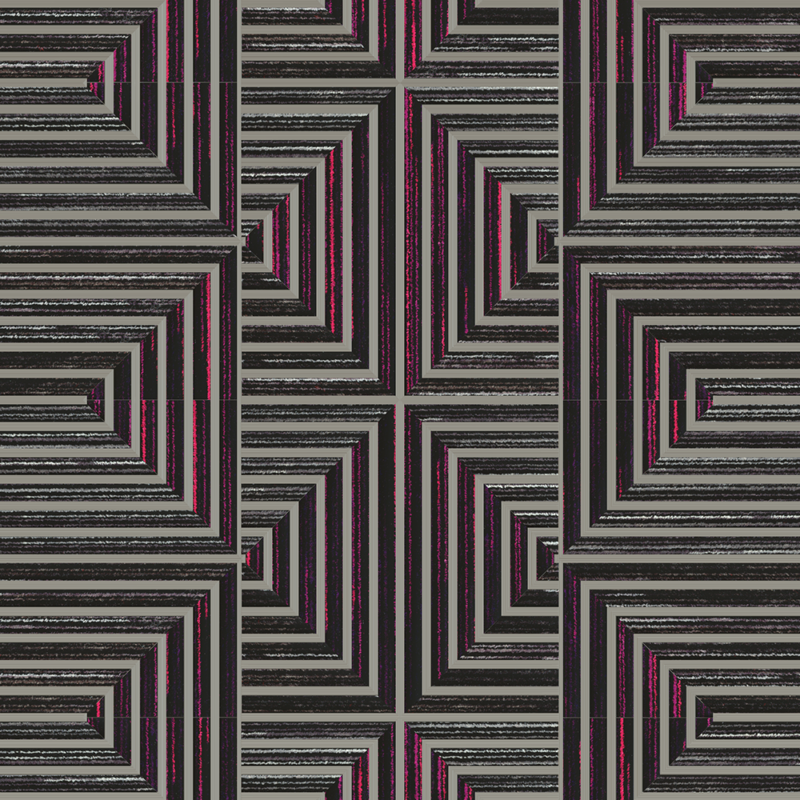

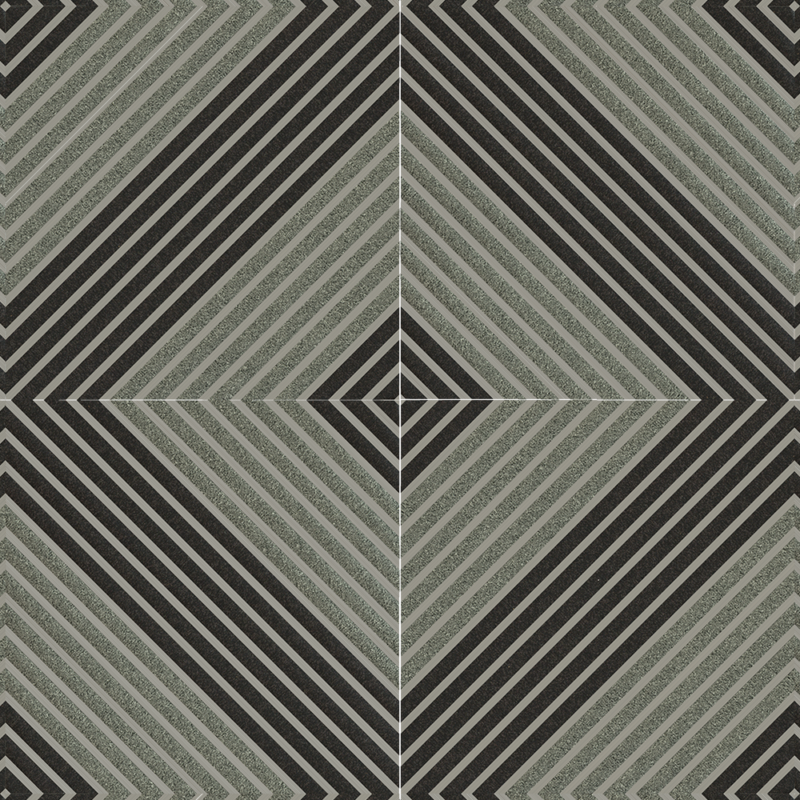

The Modulier® Prime modular entrance matting system offers endless shape, insert, and color combinations, empowering architects and facility managers to design a truly distinctive building entrance.
The main product features:
A5708
professional
entrance mat
A5710
professional
entrance mat
A5714
professional
entrance mat
A5715
professional
entrance mat
A5716
professional
entrance mat
A5721
professional
entrance mat
A5722
professional
entrance mat
A5723
professional
entrance mat
A5724
professional
entrance mat
A5727
professional
entrance mat
A5730
professional
entrance mat
A5736
professional
entrance mat
A5739
professional
entrance mat
A5774
professional
entrance mat
C4701
professional
entrance mat
C4721
professional
entrance mat
C4726
professional
entrance mat
C4730
professional
entrance mat
C4737
professional
entrance mat
C4750
professional
entrance mat
C4751
professional
entrance mat
C4756
professional
entrance mat
C4763
professional
entrance mat
C4764
professional
entrance mat
C4768
professional
entrance mat
C4784
professional
entrance mat
V20 black
needlefelt
V30 blue
needlefelt
V41 red
needlefelt
V70 grey
needlefelt
V80 brown
needlefelt
| Profil type | Modulier® 17 profil | Modulier® 10 profil |
|---|---|---|
| Profile base material | Aluminium alloy (AW 6060 T66, MILL FINISH) | Aluminium alloy (AW 6060 T66, MILL FINISH) |
| Profile height | 13 mm | 6,4 mm |
| Profile wall thickness | 1,60 mm | 1,80 mm |
| Profile width (tread surface) | 22,33 mm | 22,33 mm |
| Step sound-insulation material thickness | 2 mm | 2 mm |
| Total system height (depending on tread surface) | 17-23 mm | 10-11 mm |
| Installation depth with frame | 21 mm | 10 mm |
| Permissible static axle load | 10 kN | 10 kN |
| Thermal expansion coefficient | 0,0238 mm/m/°C | 0,0238 mm/m/°C |
| Fire safety classification | BFL-s1 | BFL-s1 |
| Slip-resistance rating | R12 | R12 |
| Profile weight | 9,2 kg/m² | 6,4 kg/m² |
| Weight with brush insert | 18,24 kg/m² | 10,2 kg/m² (bristle brush) |
| Weight with ribbed rubber insert | 21,53 kg/m² | - |
| Weight with textile insert | 13,3 kg/m² | 10,5 kg/m² |
Experience the freedom of modular design with MODULIER® PRIME, where custom forms and color harmony elevate every entrance into architecture.
Professional support for architects and interior designers. Product samples, webinars, BIM objects (from 2026 Q2).
Have questions or planning a custom installation? Our team is here to help with tailored solutions and technical guidance.
Modulier is the result of decades of experience from Cleartex, a trusted name in commercial entrance solutions. Designed for today’s architectural and functional demands, Modulier brings together innovation, precision, and design thinking.
All with a clear purpose: to create smarter, cleaner, and more adaptable entryways.
